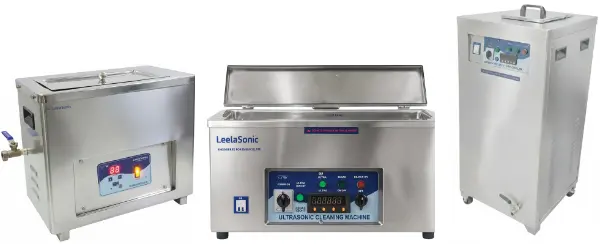

ultrasonic filter cleaning machine

We are the manufacturer of the best quality ultrasonic filter cleaning machine in India. Our filter cleaners can be much more effective and less damaging than using a brush or high-velocity water sprays cleaning systems.

These manual cleaning systems are not able to access all filters surfaces and may in fact damage the filters. Its also time consuming and requires more manpower.

Moreover an ultrasonic filter cleaner will reduce the filter cleaning time as compared to the time required for manually cleaning.

Leela sonic has developed Ultrasonic cleaning equipment for successful cleaning of Filters. No more hand and manual brushing is needed to remove contamination like grease, hydraulic oil and rust residual from the filters

We also developed a rotating filter cleaning machine for industrial cartridge filters. In this machine, the basket rotates at low rpm in hot alkaline solution in presence of ultrasonic waves.

  • Cleaning, Rinsing, and Compressed Air Drying in a Single Cleaning System.
  • All components are easily accessed for maintenance operations.
  • Available with Pulse Sweep Energy.
  • Stainless steel control enclosure provides ease of operation while less possibility of corrosion.
  • Inbuilt Digital Timer & Digital Temp. Controller.
  • Auto degassing
  • Labour cost is substantially reduced.
  • Increase the filter life.
  • Reduced filter damage from cleaning.
  • Reduced wastages.
  • Environmentally friendly.
  • Easy to maintain system.
  • MOSFET / IGBT Base technology saves power.
  • Heater with Digital Temp. Controllers increase cleaning effect.
  • Rust free stainless steel housing , easy to clean.
  • Free lid & basket as per customer need.
  • Aircraft , Aviation industry.
  • Marine industry.
  • Hydraulic oil filters.
  • Industrial filters.
Model
Tank Size ( L X W X H )
Capacity Liters.
LeelaSonic - 50
9" X 5.5" X 4"
2
LeelaSonic - 100
12" X 6" X 4"
4
LeelaSonic - 150
12" X 6" X 6"
6.5
LeelaSonic - 250
12" X 9" X 6"
10
LeelaSonic - 500
18" X 12" X 6"
20
Model
Tank Size ( L X W X H )
Capacity Liters.
LeelaSonic - 750
450 * 200 * 550 mm
50
LeelaSonic - 1000
400 * 400 * 650 mm
75
LeelaSonic - 1500
520 * 400 * 650 mm
100
LeelaSonic - 1750
600 X 320 X 650 mm
125

Higher capacity also available as per customer requirement.

How do you clean SS wire mesh oil filters?

1 . Deep your filter in degreaser alkaline solution for 10 -15 min.

2. Rinse the filter under tap water or by jet spray.

3. Put the filter into an ultrasonic bath for 10 -15 min.

4. Again rinse the filter under tap water or by jet spray.

5. Compressed air is used to dry the filter after the rinsing process is complete.

Using Leela sonic ultrasonic cleaners you can thoroughly clean the filter. This will reduce your manpower in hours & number of people required for the filter cleaning process.

While cleaning filters in ultrasonic cleaner you will not have to disassemble filters. It will also increase the life of the filter.

The Two-tank cleaning and rinsing machine designed for lower volumes of Filter are cleaned and rinsed manually by operators.

A compressed-air Drying Wand is also included to permit operators to dry Filter after the rinsing process is completed.

Two tank ultra sonic cleaning & rinsing machines are manufactured using the highest grade of materials available, and includes features such as stainless steel access panels, and Digital timers and digital temp. controller with heater to increase the efficiency of the alkaline solution.

Controls are enclosed in a steel enclosure to reduce the possibility of corrosion. Systems also have inlet and outlet ball valves to fill and drain the liquid.

LeelaSonic Table Top Modules are used for small filters.

The Two-tank ultrasonic cleaning and rinsing machine designed for medium volumes of Filter are cleaned and rinsed manually by operators. A compressed-air Drying Wand is also included to permit operators to dry Filter after the rinsing process is complete.

Ultrasonic cleaning is performed in the 1st stainless steel tank. Include a choice of Pulse Sweep Energy to increase the efficiency . The heated ultrasonic cleaning tank is heated using a high-efficiency heater with a Digital Temperature Controller which continuously displays bath temperature. Also a digital timer automatically stops the cleaning cycle when it completes.

Water rinsing is performed in the 2nd stage. Since only 1 rinse tank is included, this system is designed for lower-volume applications where detergent transfer from cleaning tank to the rinsing tank is minimal. Machines have inlet and outlet ball valves to fill and drain the liquid.

Also have a connection for compressed air to create bubbles in water for rinsing. This bubble removes the residue from the filters.

You can also use the compressed air for drying and removing residue from the filters.

Multistage ultrasonic filter cleaning machine as per customer requirements.

First Stage : Ultrasound Cleaners.

Second Stage : Ringing Chambers.

Third Stage : Drying Chambers.
